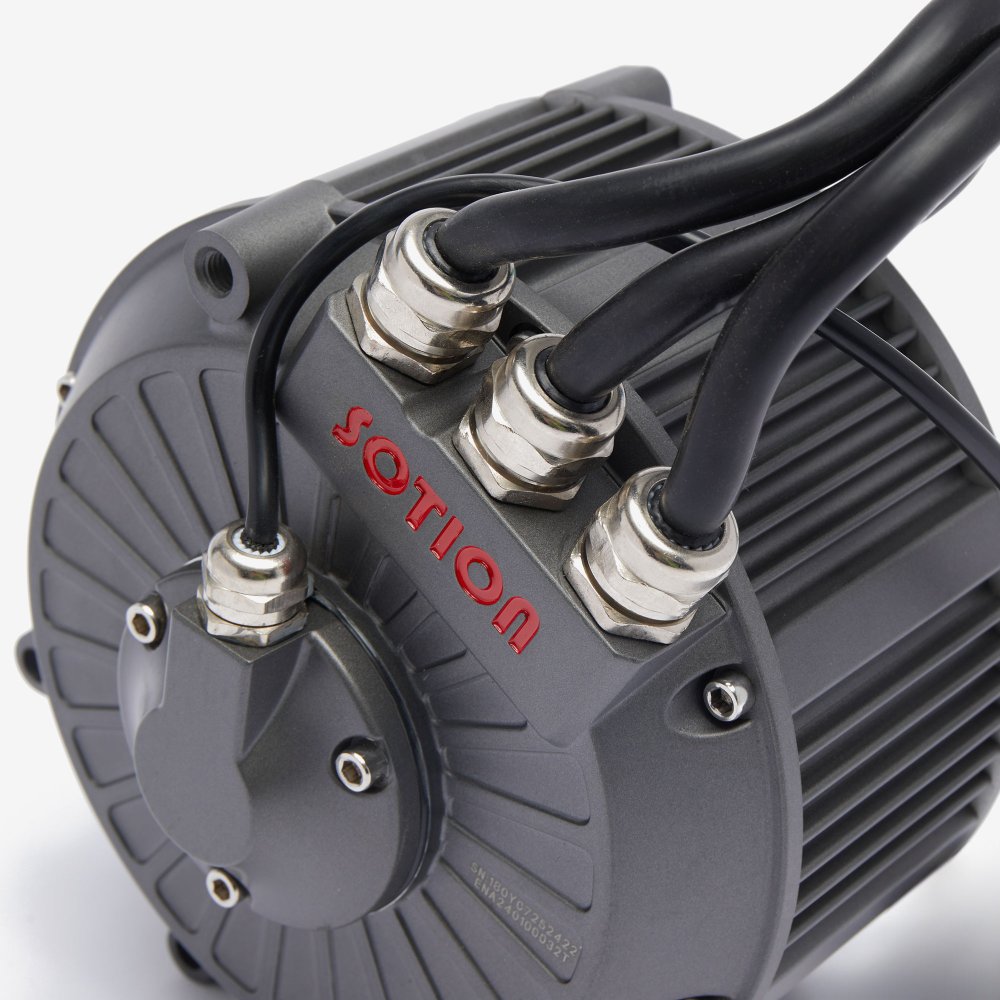

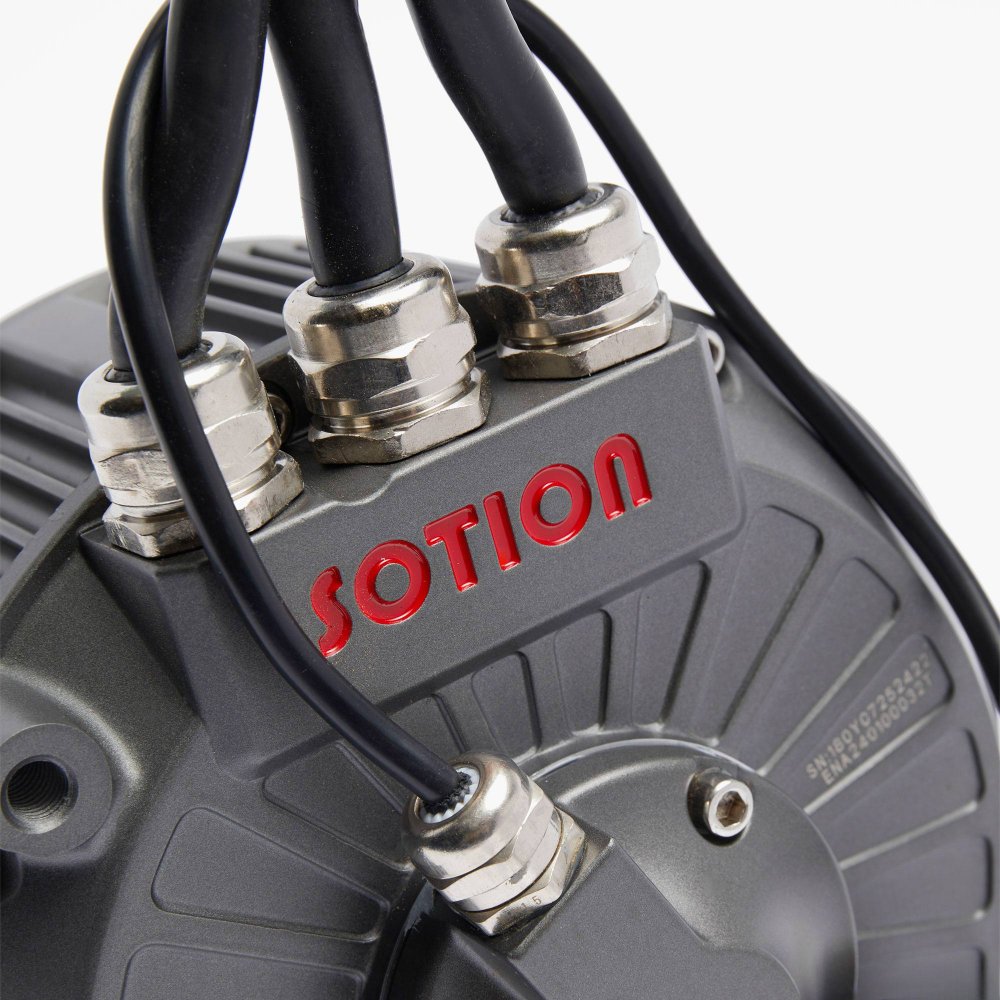

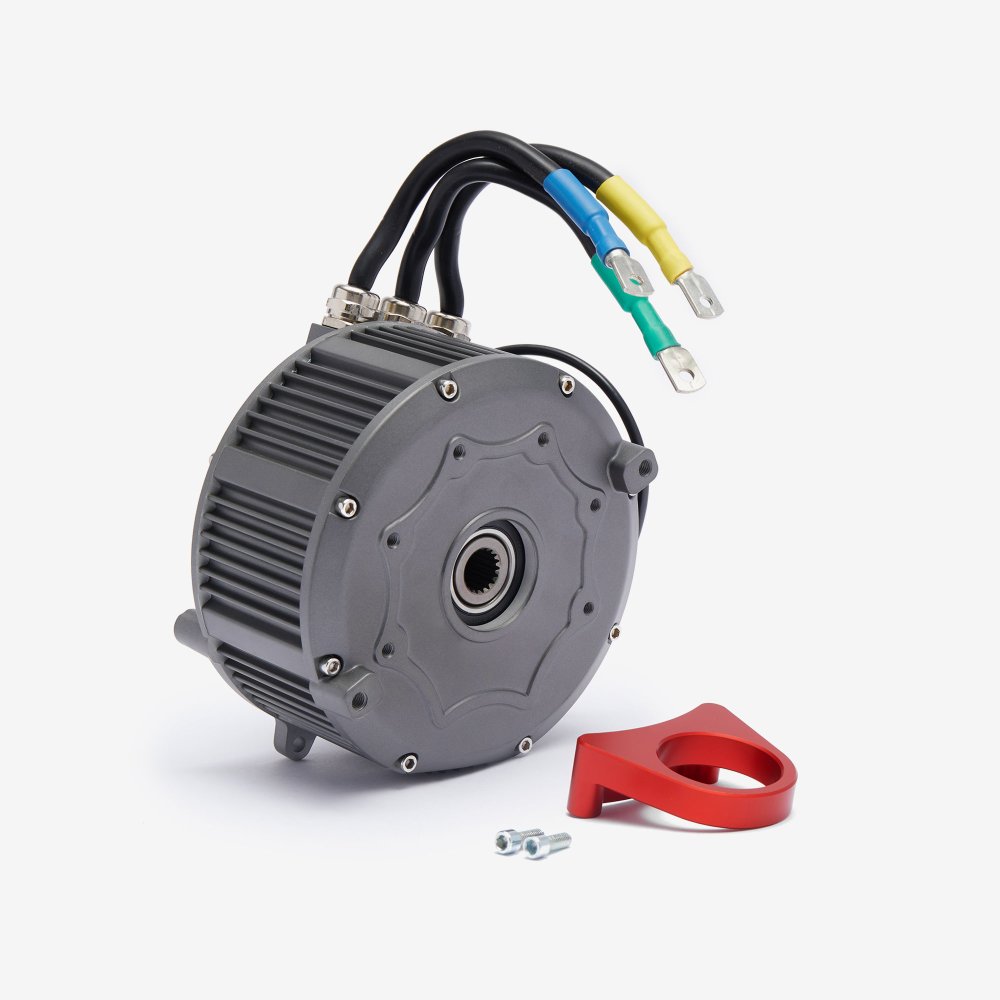

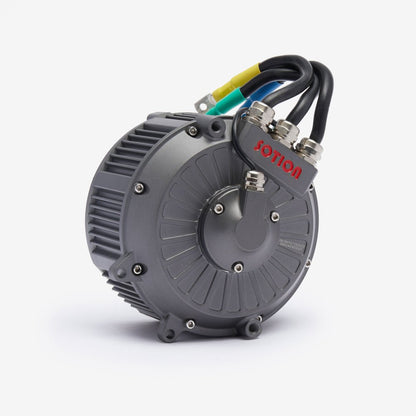

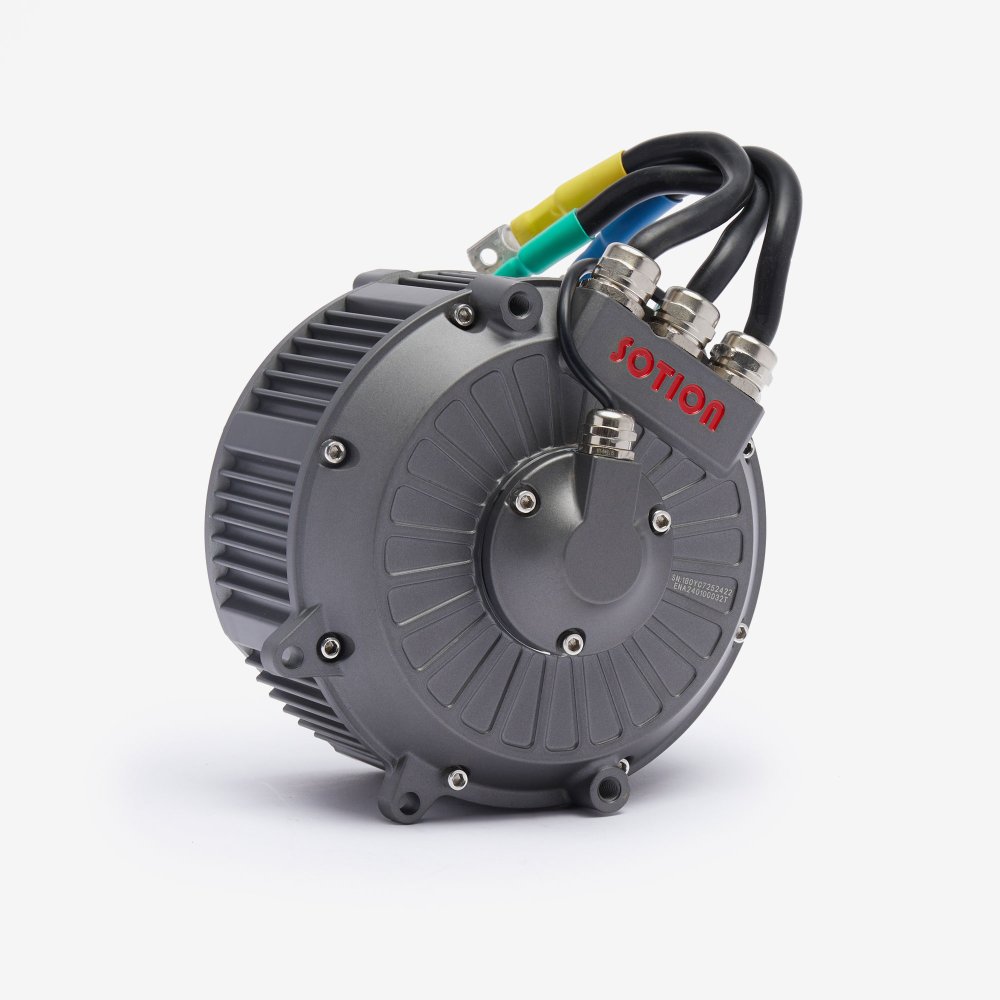

Sotion FW02 Motor with Encoder 72V 12kw for TL4000, TL3000,TL50 and TL45

Output (Nominal): 12kw

Output (Peak): 24kw

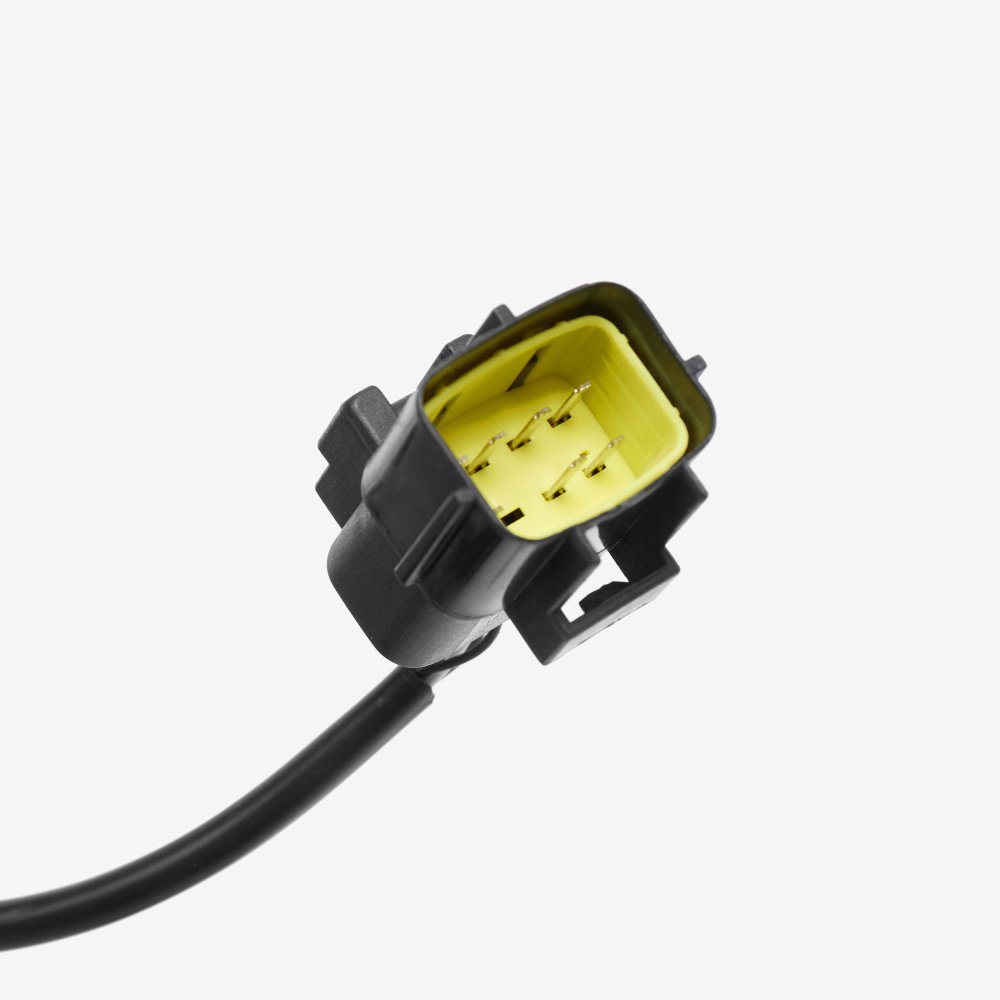

Sensor Type: Hall Effect

Speed (Rated): 5200RPM

Speed (Peak): 10000RPM

Torque (Rated): 22Nm

Torque (Peak): 60Nm

Phase Current (Peak): 650 Amps

Color Options: Silver

Weight: 10kg

Pole Pairs: 5

Temperature Sensor: NTC

Waterproof Rating: IP67

Cooling Method: Air Cooled

The motor in an electric vehicle (EV) is the component that converts electrical energy from the battery into mechanical energy to drive the vehicle. It provides propulsion by generating torque, which turns the rear wheel.

Sotion Motor (FW02) for the Talaria Sting R MX4 electric motorbike is a high-power, aftermarket performance upgrade.

Plug-And-Play: No Modifications Required

Will not work with standard controller and requires an aftermarket controller below are the controllers we know are compatible with this product

EBMX X-9000 (recomended)

TORP TC500
