EBMX XTA-60 Motor Black

Stator: 55mm

Power: 40kW Peak under load testing at 90V and 1000 phase amp

Rated RPM: 12000 Rated RPM

Real World Results: 35kW on 72V with 16 inch rear wheel and 42T sprocket

Recommended Gearing - 18 Inch Wheel: 48T Sprocket

Recommended Gearing - 16 Inch Wheel: 42T Sprocket

Current Type: AC

Maximum Power: 40kW

Maximum RPM: 12000

The motor in an electric vehicle (EV) is the component that converts electrical energy from the battery into mechanical energy to drive the vehicle. It provides propulsion by generating torque, which turns the rear wheel.

Utilising the EBMX high-RPM rotor design from our proven XLB-60 range, this motor features an advanced stator architecture that spins with reduced resistance, delivering rapid acceleration and high-speed performance.

With a higher KV setup, this motor still delivers strong low-end torque and instant throttle response, along with of an extended power band for sustained performance across all speeds.

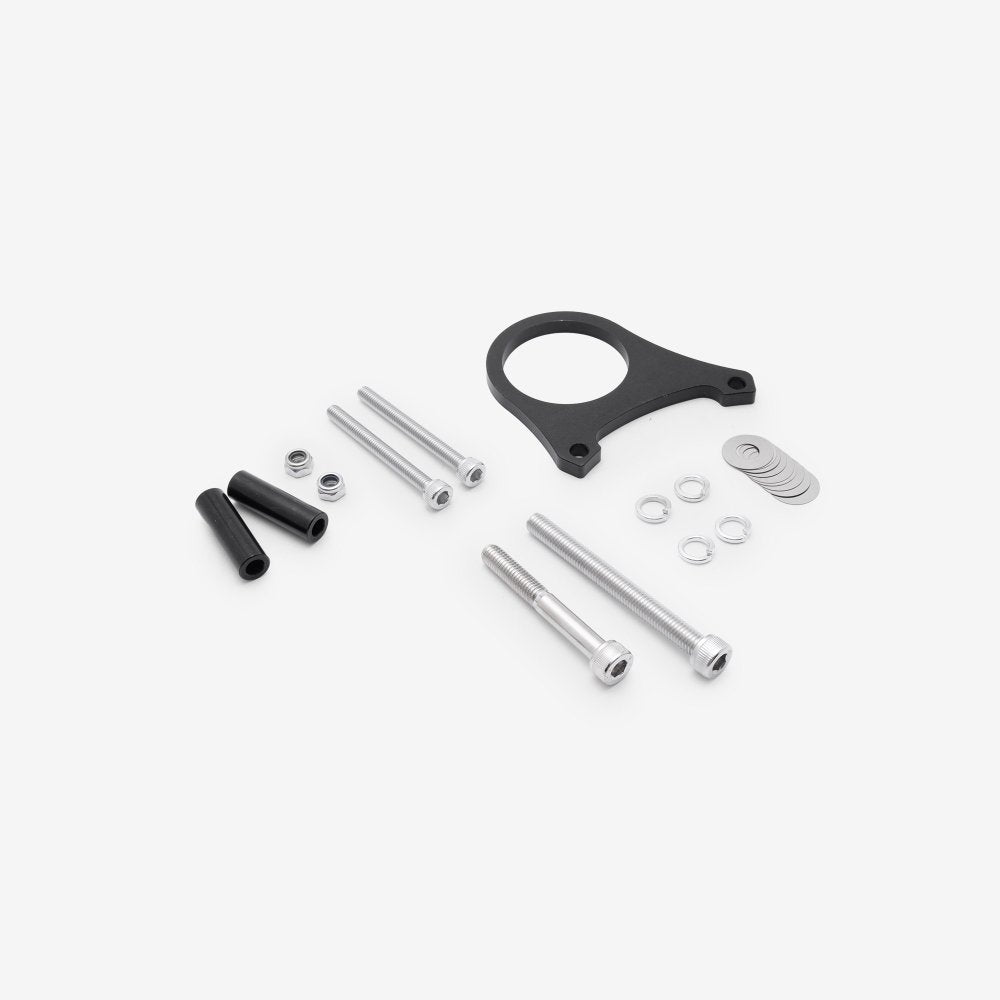

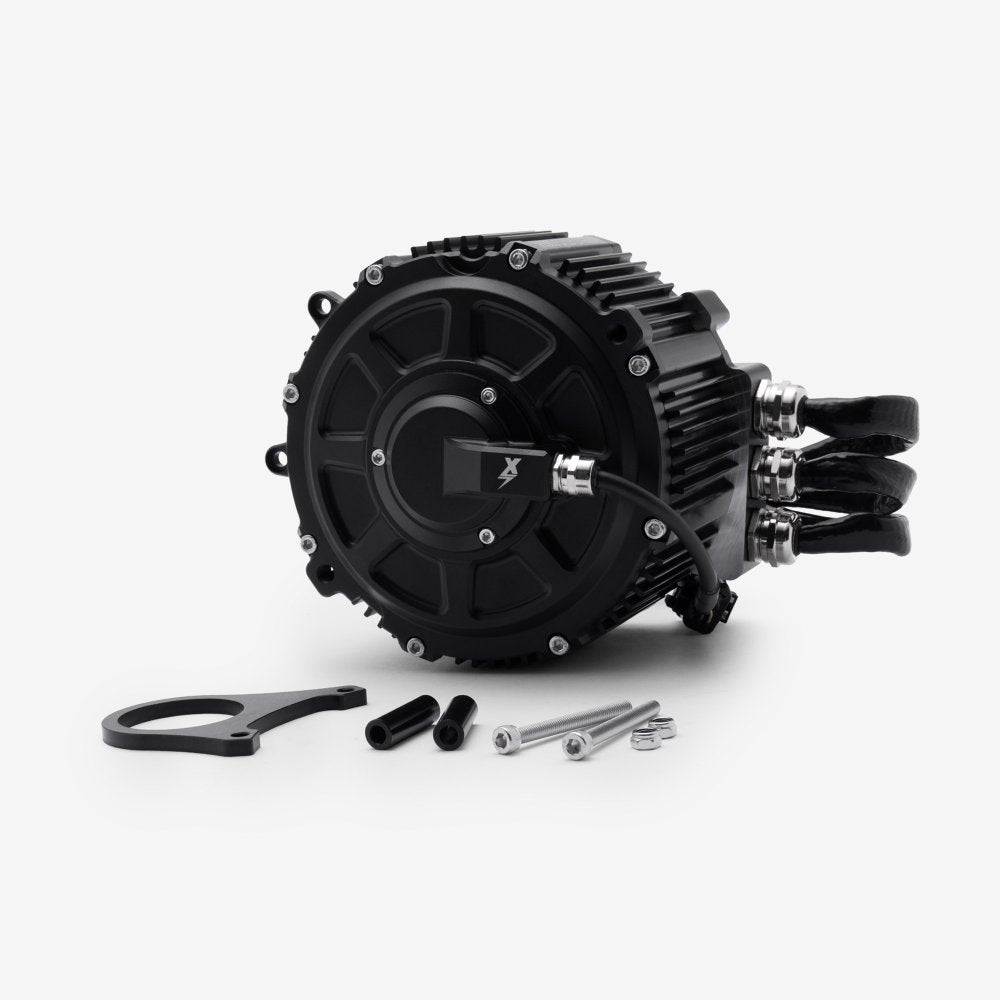

Suitable for use, with an upgraded battery and includes hardware for fitment on MX3 and MX4 (gearbox not included).

 IMPORTANT: NOT INTENDED FOR ROAD USE: EBMX Motors are NOT designed for use on public roads or crowded areas. These motors are strictly meant for off-road use and controlled environments only.
EXPERIENCED RIDERS ONLY: These high-performance motors are recommended for experienced riders who possess the necessary skills and expertise to handle powerful machines. Novice riders are strongly advised against using our motors.
USE WITH CAUTION: The enhanced speed and power of our motors require extreme care and attentiveness. Always exercise caution and be aware of your surroundings when operating our products.
UPGRADE SAFETY EQUIPMENT: It is crucial to ensure that your bike is equipped with upgraded brakes and other safety features capable of handling the increased speed and power provided by our motors. Using the motor with stock brakes or inadequate safety measures may result in accidents and severe injuries.
ADHERE TO LOCAL LAWS: Familiarise yourself with local regulations and laws pertaining to off-road vehicle usage in your area. Always ride within designated areas and private tracks that allow for safe operation.
KEEP AWAY FROM CHILDREN: Our motors are not toys, and they must be kept out of reach of children. Never allow minors or inexperienced individuals to operate these motors.
RIDE RESPONSIBLY: Ensure that you are in a sound state of mind and not under the influence of any substances that could impair your judgment before operating the motor.
